How to Create OpenVPN with Create Instance from One-Click Application in Customer Portal

Last updated on Jan 8,2026 |

under

Cloud, Getting Started, OpenVPN, Portal, VPN, VPN

by xiangwen

Introduction:

For users requiring a robust and encrypted secure remote connection, such as OpenVPN, efficient deployment of this Virtual Private Network (VPN) infrastructure is a critical capability. NovaCloud is designed to provide these solutions, offering affordable, reliable, highly secure cloud computing for everyone directly through the Customer Portal.

To accelerate the deployment of OpenVPN, the Customer Portal provides the Create Instance from One-Click Application feature. This specialized method streamlines the launch of a Cloud Instance pre-configured with the required software. To deploy OpenVPN, users must select the Remote-Access VPN category during the instance creation process.

This guide provides a professional, step-by-step walkthrough detailing how to launch a Cloud Instance pre-configured with OpenVPN using the One-Click Application feature in the NovaCloud Customer Portal, ensuring you can swiftly establish a highly secure and functional remote access environment.

Prerequisites:

The user must have access to the Customer Portal.
The account balance must contain sufficient credit/points
The user must select an existing Public Key during the creation process. If you do not have any keys yet, you are required to generate or import one before proceeding.

Step-by-step Guide:

Step 1: Click NovaCloud

Locate and click on the NovaCloud section in the left-hand navigation menu to access cloud resources.

Step 2: Click Cloud Instances

Navigate to the management interface for your virtual machine resources.

Step 3: Click Launch Project

Initiate the process for deploying a new cloud resource.

Step 4: Click Create Instance from One-Click Application

Select the accelerated deployment method designed for provisioning instances pre-installed with your chosen application (database).

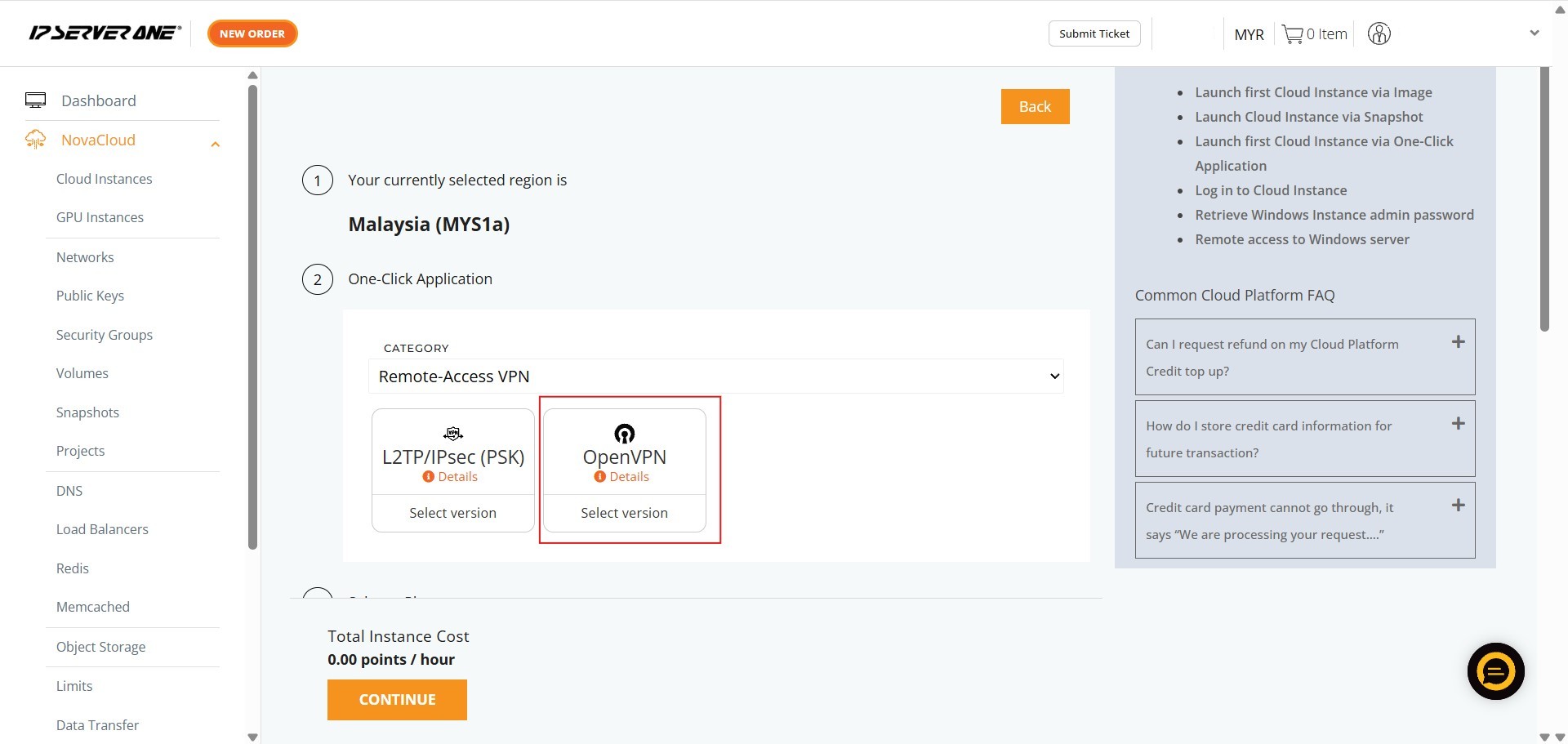

Step 5: Choose Category as Remote-Access VPN, Select OpenVPN and Choose the Version

Ensure the Category is selected as Remote-Access VPN.
Select the specific VPN application, OpenVPN

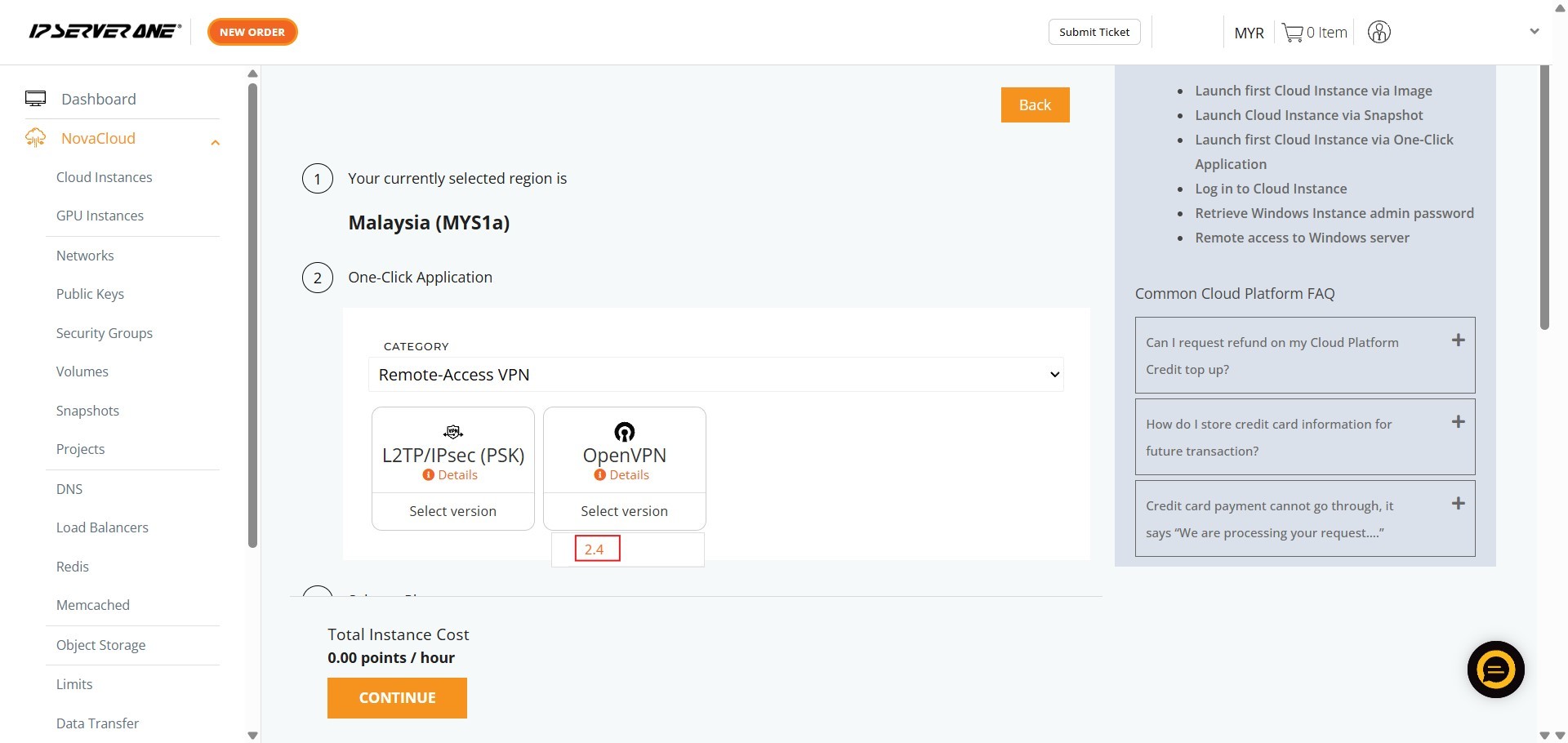

Choose the required version you wish to deploy

Step 6: Select a Plan

Choose the appropriate resource plan (CPU, RAM, data transfer limits) for your database instance.

Important Note ⚠️: You can optionally choose a RAM Optimised plan if your needs require higher performance characteristics, which is particularly suitable for data storage applications.

Step 7: Select Your Storage and Key in Volume Size

Define the volume size for your storage.

Important Note ⚠️: The volume size must be at least 10 GB and no more than 1000 GB in size.

Step 8: Select Project to Attach, Key in Name Instance and Click Continue

Associate the instance with an existing project (if desired) and provide a unique name for your instance.

Important Note ⚠️: The instance name can only contain letters, numbers, underscores and dashes, and must be between 1 and 60 characters long.

Step 9: Select Public Key and Enter OpenVPN Username

Select the necessary Public Key
Enter the desired OpenVPN username

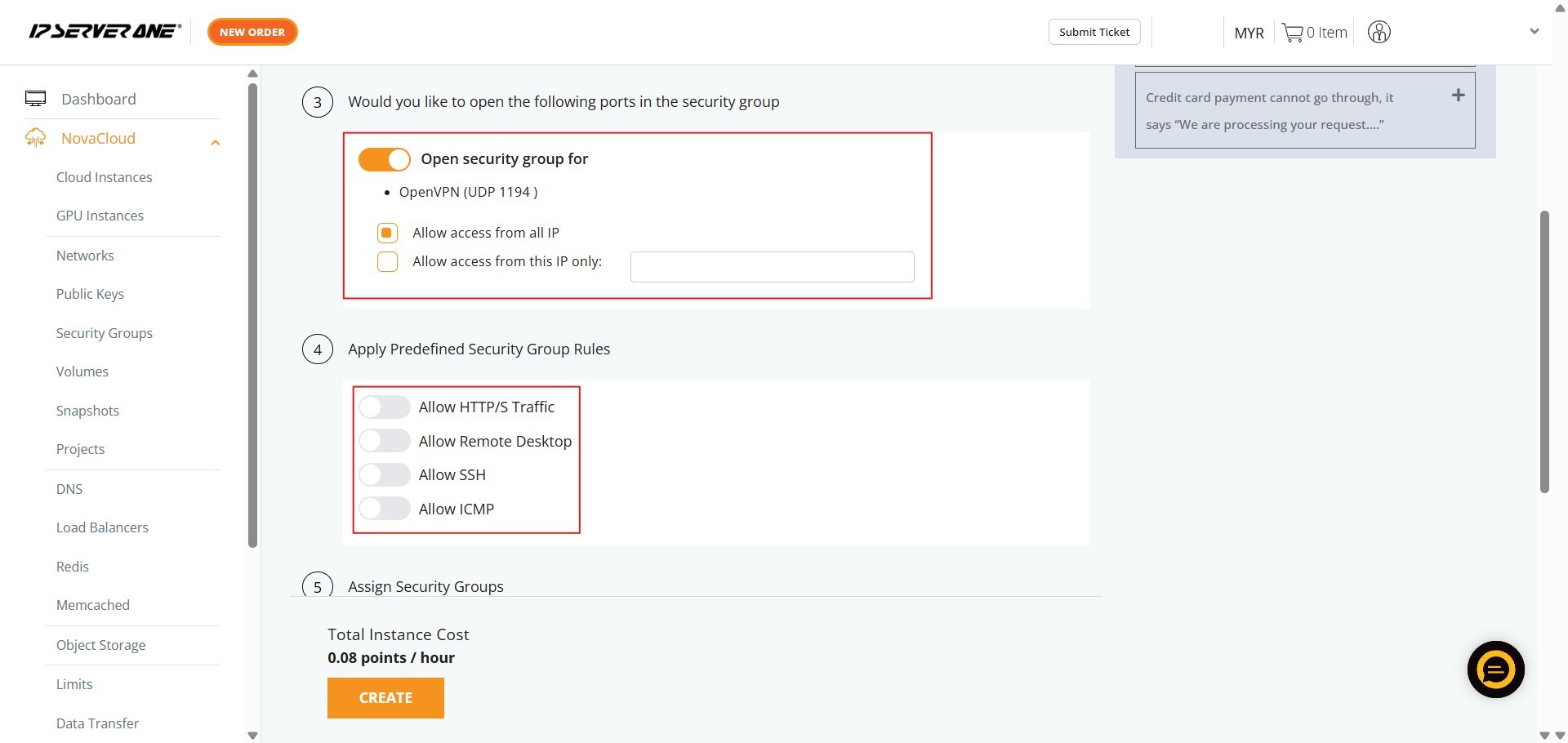

Step 10: Configure Port of Security Group and Security Group Rules

Define which ports should be opened in the security group for the database (e.g., specific TCP ports)
Apply predefined security rules (e.g., allowing SSH or HTTP/S traffic).

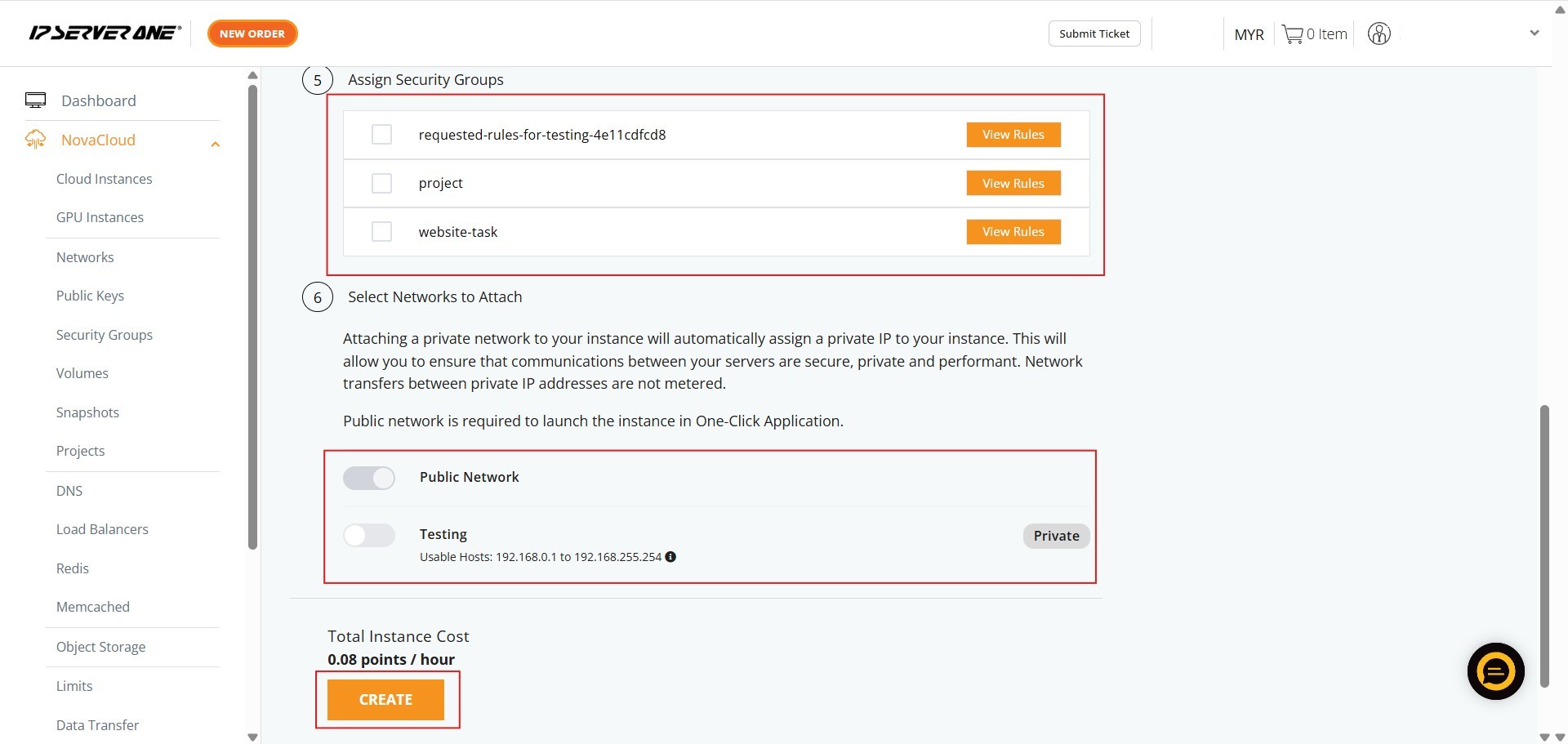

Step 11: Assign Security Groups, Select Network to Attach and Click Create

Apply specific existing security groups (if needed)
Select the network(s) to attach.

Important Note ⚠️: You can skip the assigned security group system and the system will auto assign a security group for you. Attaching a private network automatically assigns a private IP to ensure secure, private, and performant communication, and network transfers between private IP addresses are not metered.

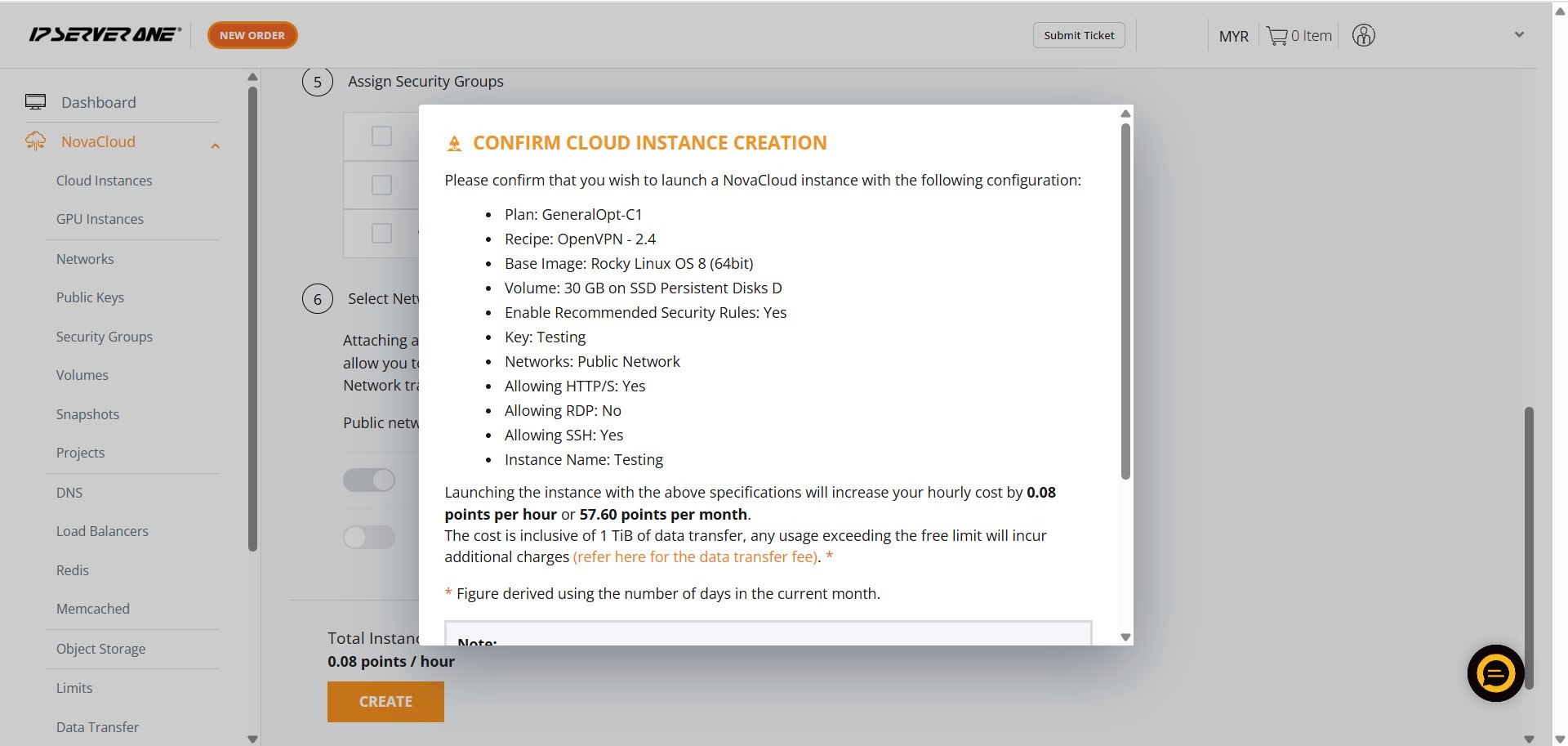

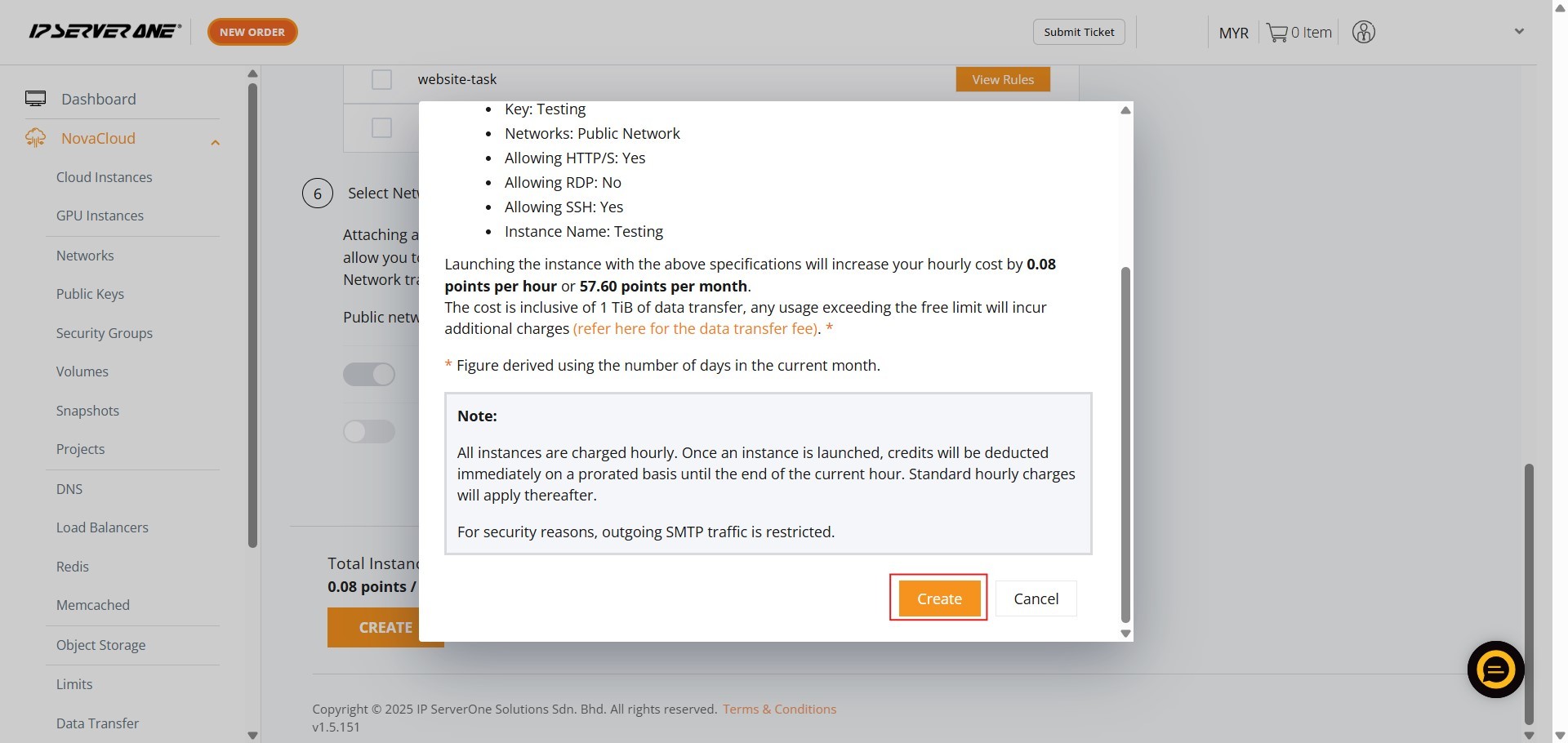

Step 12: Scroll and Click Create

A confirmation pop-up will appear. Review the specifications, scroll to the bottom, and click Create to launch the instance.

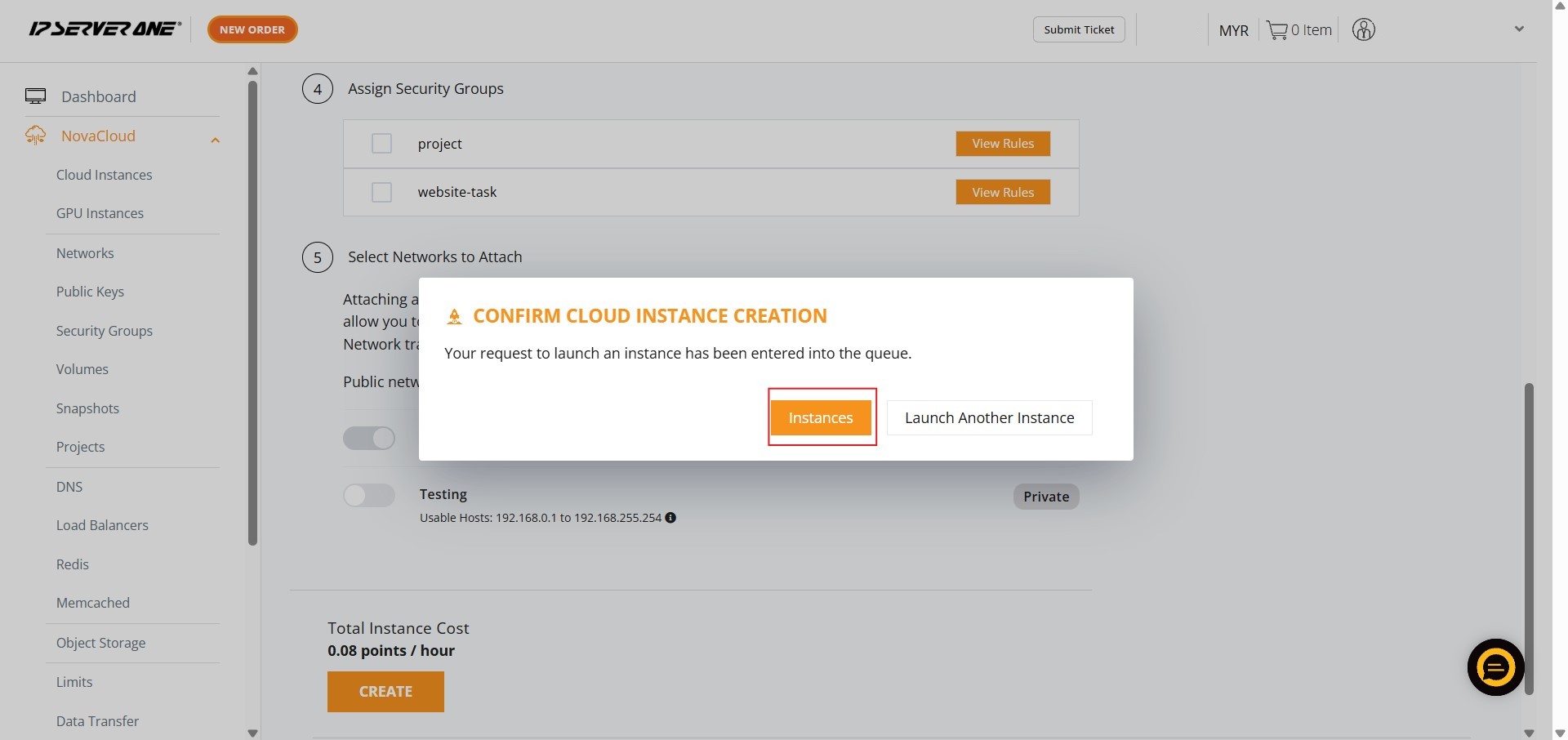

Step 13: Click Instance

Click the “Instances” button in the confirmation pop-up to navigate to the list of Cloud Instances.

Step 14: Success

Your request to launch the instance has been queued, and the provisioning process is underway (status “Creating” or “Active”).

Conclusion:

By successfully completing the outlined steps, you have effectively utilized the streamlined Create Instance from One-Click Application feature to deploy a secure OpenVPN instance within the NovaCloud Customer Portal. This process ensured the efficient provisioning of your VPN solution by selecting the appropriate category (Remote-Access VPN) and configuring the necessary Public Key and OpenVPN username.

After submitting the request and clicking “Create”, your new OpenVPN instance was queued for launch. You can verify its provisioning status (“Creating” or “Active”) by clicking “Instance” and navigating to the Cloud Instances page.

It is crucial to remember the operational constraints of the service: All instances are charged hourly. Credits are deducted immediately on a prorated basis until the end of the current hour, after which standard hourly charges will apply thereafter. For security purposes, outgoing SMTP traffic is restricted.

Should you encounter any issues or have any questions during this procedure, our support team at IPSERVERONE is always here to assist you. Don’t hesitate to reach out to us at support@ipserverone.com for any help you need.
